Diligent::PipelineStateD3D11Impl Class Reference

Pipeline state object implementation in Direct3D11 backend. More...

#include <PipelineStateD3D11Impl.hpp>

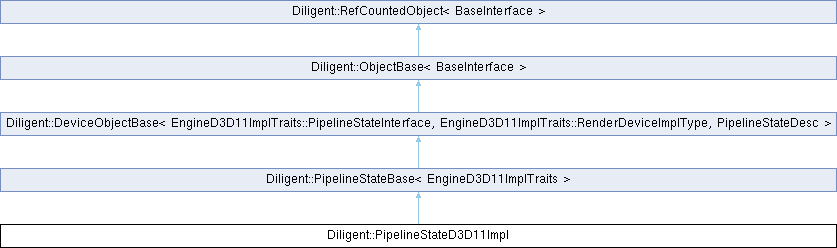

Inheritance diagram for Diligent::PipelineStateD3D11Impl:

Public Member Functions
virtual bool DILIGENT_CALL_TYPE	IsCompatibleWith (const IPipelineState *pPSO) const override final
	Implementation of IPipelineState::IsCompatibleWith() in Direct3D11 backend.
virtual ID3D11BlendState *DILIGENT_CALL_TYPE	GetD3D11BlendState () override final
	Implementation of IPipelineStateD3D11::GetD3D11BlendState() method.
virtual ID3D11RasterizerState *DILIGENT_CALL_TYPE	GetD3D11RasterizerState () override final
	Implementation of IPipelineStateD3D11::GetD3D11RasterizerState() method.
virtual ID3D11DepthStencilState *DILIGENT_CALL_TYPE	GetD3D11DepthStencilState () override final
	Implementation of IPipelineStateD3D11::GetD3D11DepthStencilState() method.
virtual ID3D11InputLayout *DILIGENT_CALL_TYPE	GetD3D11InputLayout () override final
	Implementation of IPipelineStateD3D11::GetD3D11InputLayout() method.
virtual ID3D11VertexShader *DILIGENT_CALL_TYPE	GetD3D11VertexShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11VertexShader() method.
virtual ID3D11PixelShader *DILIGENT_CALL_TYPE	GetD3D11PixelShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11PixelShader() method.
virtual ID3D11GeometryShader *DILIGENT_CALL_TYPE	GetD3D11GeometryShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11GeometryShader() method.
virtual ID3D11DomainShader *DILIGENT_CALL_TYPE	GetD3D11DomainShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11DomainShader() method.
virtual ID3D11HullShader *DILIGENT_CALL_TYPE	GetD3D11HullShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11HullShader() method.
virtual ID3D11ComputeShader *DILIGENT_CALL_TYPE	GetD3D11ComputeShader () override final
	Implementation of IPipelineStateD3D11::GetD3D11ComputeShader() method.
Public Member Functions inherited from Diligent::PipelineStateBase< EngineD3D11ImplTraits >
	PipelineStateBase (IReferenceCounters *pRefCounters, RenderDeviceImplType *pDevice, const PSOCreateInfoType &CreateInfo, bool bIsDeviceInternal=false)
	Initializes the object as a specific pipeline.
virtual Uint32 DILIGENT_CALL_TYPE	GetResourceSignatureCount () const override final
	Implementation of IPipelineState::GetResourceSignatureCount().
virtual PipelineResourceSignatureImplType *DILIGENT_CALL_TYPE	GetResourceSignature (Uint32 Index) const override final
	Implementation of IPipelineState::GetResourceSignature().
	PipelineStateBase (IReferenceCounters *pRefCounters, RenderDeviceImplType *pDevice, const PSOCreateInfoType &CreateInfo, bool bIsDeviceInternal=false)
	Initializes the object as a specific pipeline.
virtual Uint32 DILIGENT_CALL_TYPE	GetResourceSignatureCount () const override final
	Implementation of IPipelineState::GetResourceSignatureCount().
virtual PipelineResourceSignatureImplType *DILIGENT_CALL_TYPE	GetResourceSignature (Uint32 Index) const override final
	Implementation of IPipelineState::GetResourceSignature().
Public Member Functions inherited from Diligent::DeviceObjectBase< BaseInterface, RenderDeviceImplType, ObjectDescType >
	DeviceObjectBase (IReferenceCounters *pRefCounters, RenderDeviceImplType *pDevice, const ObjectDescType &ObjDesc, bool bIsDeviceInternal=false)
virtual Int32 DILIGENT_CALL_TYPE	GetUniqueID () const override final
	Returns unique identifier.
virtual void DILIGENT_CALL_TYPE	SetUserData (IObject *pUserData) override final
	Implementation of IDeviceObject::SetUserData.
virtual IObject *DILIGENT_CALL_TYPE	GetUserData () const override final
	Implementation of IDeviceObject::GetUserData.

Additional Inherited Members
Protected Types inherited from Diligent::PipelineStateBase< EngineD3D11ImplTraits >
using	SignatureAutoPtrType
	Resource signatures arranged by their binding indices.
Protected Attributes inherited from Diligent::PipelineStateBase< EngineD3D11ImplTraits >
SHADER_TYPE	m_ActiveShaderStages
	Shader stages that are active in this PSO.
const bool	m_UsingImplicitSignature
	True if the pipeline was created using implicit root signature.
Uint8	m_SignatureCount
SHADER_TYPE	m_ActiveShaderStages
	Shader stages that are active in this PSO.
const bool	m_UsingImplicitSignature
	True if the pipeline was created using implicit root signature.
Uint8	m_SignatureCount
Protected Attributes inherited from Diligent::DeviceObjectBase< BaseInterface, RenderDeviceImplType, ObjectDescType >
RenderDeviceImplType *const	m_pDevice
	Pointer to the device.
ObjectDescType	m_Desc
	Object description.

Detailed Description

Pipeline state object implementation in Direct3D11 backend.
