Diligent::GraphicsPipelineStateCreateInfoX Struct Reference

C++ wrapper over GraphicsPipelineStateCreateInfo. More...

#include <GraphicsTypesX.hpp>

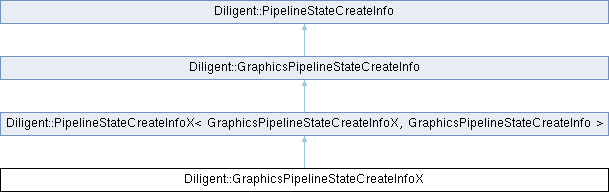

Inheritance diagram for Diligent::GraphicsPipelineStateCreateInfoX:

Additional Inherited Members
Public Attributes inherited from Diligent::GraphicsPipelineStateCreateInfo
GraphicsPipelineDesc	GraphicsPipeline
	Graphics pipeline state description.
IShader *	pVS = nullptr
	Vertex shader to be used with the pipeline.
IShader *	pPS = nullptr
	Pixel shader to be used with the pipeline.
IShader *	pDS = nullptr
	Domain shader to be used with the pipeline.
IShader *	pHS = nullptr
	Hull shader to be used with the pipeline.
IShader *	pGS = nullptr
	Geometry shader to be used with the pipeline.
IShader *	pAS = nullptr
	Amplification shader to be used with the pipeline.
IShader *	pMS = nullptr
	Mesh shader to be used with the pipeline.
Public Attributes inherited from Diligent::PipelineStateCreateInfo
PipelineStateDesc	PSODesc
	Pipeline state description.
PSO_CREATE_FLAGS	Flags = PSO_CREATE_FLAG_NONE
	Pipeline state creation flags, see Diligent::PSO_CREATE_FLAGS.
Uint32	ResourceSignaturesCount = 0
	The number of elements in ppResourceSignatures array.
IPipelineResourceSignature **	ppResourceSignatures = nullptr
Uint32	NumSpecializationConstants = 0
	The number of specialization constants.
const SpecializationConstant *	pSpecializationConstants = nullptr
IPipelineStateCache *	pPSOCache = nullptr
void *	pInternalData = nullptr
	For internal use only. Must always be null.

Detailed Description

C++ wrapper over GraphicsPipelineStateCreateInfo.
