Diligent::RenderDeviceD3DBase< EngineImplTraits > Class Template Reference

Base implementation of a D3D render device. More...

#include <RenderDeviceD3DBase.hpp>

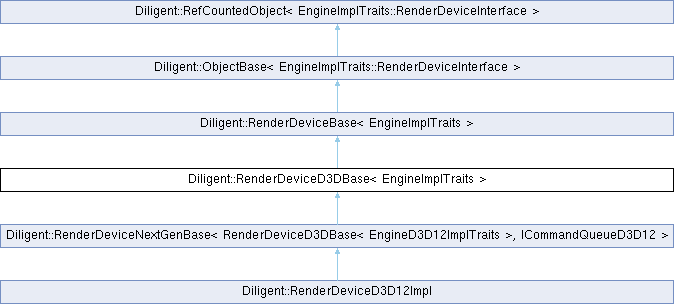

Inheritance diagram for Diligent::RenderDeviceD3DBase< EngineImplTraits >:

Additional Inherited Members
Public Member Functions inherited from Diligent::RenderDeviceBase< EngineImplTraits >
	RenderDeviceBase (IReferenceCounters *pRefCounters, IMemoryAllocator &RawMemAllocator, IEngineFactory *pEngineFactory, const EngineCreateInfo &EngineCI, const GraphicsAdapterInfo &AdapterInfo)
virtual void DILIGENT_CALL_TYPE	CreateResourceMapping (const ResourceMappingCreateInfo &ResMappingCI, IResourceMapping **ppMapping) override final
	Implementation of IRenderDevice::CreateResourceMapping().
virtual const RenderDeviceInfo &DILIGENT_CALL_TYPE	GetDeviceInfo () const override final
	Implementation of IRenderDevice::GetDeviceInfo().
virtual const GraphicsAdapterInfo &DILIGENT_CALL_TYPE	GetAdapterInfo () const override final
	Implementation of IRenderDevice::GetAdapterInfo().
virtual const TextureFormatInfo &DILIGENT_CALL_TYPE	GetTextureFormatInfo (TEXTURE_FORMAT TexFormat) const override final
	Implementation of IRenderDevice::GetTextureFormatInfo().
virtual const TextureFormatInfoExt &DILIGENT_CALL_TYPE	GetTextureFormatInfoExt (TEXTURE_FORMAT TexFormat) override final
	Implementation of IRenderDevice::GetTextureFormatInfoExt().
virtual void DILIGENT_CALL_TYPE	CreateTilePipelineState (const TilePipelineStateCreateInfo &PSOCreateInfo, IPipelineState **ppPipelineState) override
	Base implementation of IRenderDevice::CreateTilePipelineState().
void	SetImmediateContext (size_t Ctx, DeviceContextImplType *pImmediateContext)
	Set weak reference to the immediate context.
size_t	GetNumImmediateContexts () const
	Returns the number of immediate contexts.
size_t	GetNumDeferredContexts () const
	Returns number of deferred contexts.
Protected Member Functions inherited from Diligent::RenderDeviceBase< EngineImplTraits >
template<typename ObjectType, typename ObjectDescType, typename ObjectConstructorType>
void	CreateDeviceObject (const Char *ObjectTypeName, const ObjectDescType &Desc, ObjectType **ppObject, ObjectConstructorType ConstructObject)
	Helper template function to facilitate device object creation.
Protected Attributes inherited from Diligent::RenderDeviceBase< EngineImplTraits >
ObjectsRegistry< SamplerDesc, RefCntAutoPtr< ISampler > >	m_SamplersRegistry
	Sampler state registry.
std::vector< RefCntWeakPtr< DeviceContextImplType >, STDAllocatorRawMem< RefCntWeakPtr< DeviceContextImplType > > >	m_wpImmediateContexts
std::mutex	m_DeferredCtxMtx
	Weak references to deferred contexts.
IMemoryAllocator &	m_RawMemAllocator
	Raw memory allocator.
FixedBlockMemoryAllocator	m_TexObjAllocator
	Allocator for texture objects.
FixedBlockMemoryAllocator	m_TexViewObjAllocator
	Allocator for texture view objects.
FixedBlockMemoryAllocator	m_BufObjAllocator
	Allocator for buffer objects.
FixedBlockMemoryAllocator	m_BuffViewObjAllocator
	Allocator for buffer view objects.
FixedBlockMemoryAllocator	m_ShaderObjAllocator
	Allocator for shader objects.
FixedBlockMemoryAllocator	m_SamplerObjAllocator
	Allocator for sampler objects.
FixedBlockMemoryAllocator	m_PSOAllocator
	Allocator for pipeline state objects.
FixedBlockMemoryAllocator	m_SRBAllocator
	Allocator for shader resource binding objects.
FixedBlockMemoryAllocator	m_ResMappingAllocator
	Allocator for resource mapping objects.
FixedBlockMemoryAllocator	m_FenceAllocator
	Allocator for fence objects.
FixedBlockMemoryAllocator	m_QueryAllocator
	Allocator for query objects.
FixedBlockMemoryAllocator	m_RenderPassAllocator
	Allocator for render pass objects.
FixedBlockMemoryAllocator	m_FramebufferAllocator
	Allocator for framebuffer objects.
FixedBlockMemoryAllocator	m_BLASAllocator
	Allocator for bottom-level acceleration structure objects.
FixedBlockMemoryAllocator	m_TLASAllocator
	Allocator for top-level acceleration structure objects.
FixedBlockMemoryAllocator	m_SBTAllocator
	Allocator for shader binding table objects.
FixedBlockMemoryAllocator	m_PipeResSignAllocator
	Allocator for pipeline resource signature objects.
FixedBlockMemoryAllocator	m_MemObjAllocator
	Allocator for device memory objects.
FixedBlockMemoryAllocator	m_PSOCacheAllocator
	Allocator for pipeline state cache objects.

Detailed Description

template<typename EngineImplTraits>
class Diligent::RenderDeviceD3DBase< EngineImplTraits >

Base implementation of a D3D render device.
