Diligent::AppBase Class Reference

#include <AppBase.hpp>

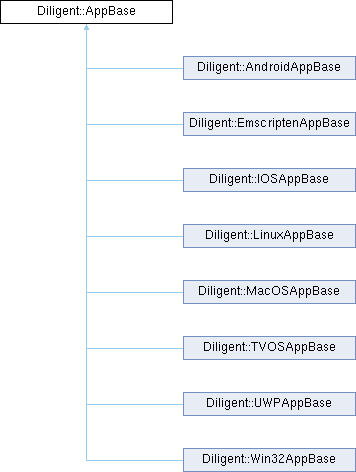

Inheritance diagram for Diligent::AppBase:

Public Types
enum class	GoldenImageMode { None = 0 , Capture , Compare , CompareUpdate }
	Golden image capture mode. More...
enum class	CommandLineStatus { OK , Help , Error }
	Command line processing result. More...

Public Member Functions
virtual CommandLineStatus	ProcessCommandLine (int argc, const char *const *argv)=0
	Processes the command line arguments.
virtual const char *	GetAppTitle () const =0
	Returns the application tile.
virtual void	Update (double CurrTime, double ElapsedTime)
	Updates the application state.
virtual void	Render ()=0
	Renders the frame.
virtual void	Present ()=0
	Presents the frame.
virtual void	WindowResize (int width, int height)=0
	Called when the window resizes.
virtual void	GetDesiredInitialWindowSize (int &width, int &height)
	Called by the framework to request the desired initial window size.
virtual GoldenImageMode	GetGoldenImageMode () const
	Returns the golden image mode, see Diligent::AppBase::GoldenImageMode.
virtual int	GetExitCode () const
	Returns the exit code.
virtual bool	IsReady () const
	Returns true if the app is initialized and ready to run.
virtual HOT_KEY_FLAGS	GetHotKeyFlags () const
	Returns the hot key handling flags.

Detailed Description

Base class for native applications. Platform-specific classes such as Win32AppBase, LinuxAppBase are inherited from AppBase.

Member Enumeration Documentation

CommandLineStatus

enum class Diligent::AppBase::CommandLineStatus

strong

Command line processing result.

Enumerator
OK	Command line has been processed successfully.
Help	Command line help has been requested.
Error	Command line was processed with error.

GoldenImageMode

enum class Diligent::AppBase::GoldenImageMode

strong

Golden image capture mode.

Enumerator
None	Gloden image processing is disabled.
Capture	Capture the golden image. In this mode, the application renders one frame, captures it as a golden image and exits.
Compare	Compare the golden image. In this mode, the application renders one frame, compares it with the golden image and exists. Zero exit code indicates that the frame is identical to the golden image. The non-zero code indicates the number of pixels that differ.
CompareUpdate	Compare the golden image as in Compare mode, and then update it as in Capture mode.

Member Function Documentation

GetAppTitle()

virtual const char * Diligent::AppBase::GetAppTitle ( ) const

pure virtual

Returns the application tile.

An application must override this method to define the application title.

Returns

The application title

GetDesiredInitialWindowSize()

virtual void Diligent::AppBase::GetDesiredInitialWindowSize ( int & width, int & height )

inlinevirtual

Called by the framework to request the desired initial window size.

This method is called before the platform-specific window is created. An application may override this method to specify required initial window width and height.

GetExitCode()

virtual int Diligent::AppBase::GetExitCode ( ) const

inlinevirtual

Returns the exit code.

An application may override this method to return a specific exit code.

Present()

virtual void Diligent::AppBase::Present ( )

pure virtual

Presents the frame.

An application must override this method to perform operations required to present the rendered frame on the screen.

ProcessCommandLine()

virtual CommandLineStatus Diligent::AppBase::ProcessCommandLine ( int argc, const char *const * argv )

pure virtual

Processes the command line arguments.

The method is called by the framework to let the application process the command line arguments. This method is called before any other method is called.

Parameters

[in]	argc	- The number of arguments in argv array.
[in]	argv	- An array of arguments.

Returns

Command line processing status, see CommandLineStatus.

Render()

virtual void Diligent::AppBase::Render ( )

pure virtual

Renders the frame.

An application must override this method to perform operations required to render the frame.

Update()

virtual void Diligent::AppBase::Update ( double CurrTime, double ElapsedTime )

inlinevirtual

Updates the application state.

This method is called by the framework to let the application perform the required update operations.

Parameters

[in]	CurrTime	- Current time, i.e. the time elapsed since the application started.
[in]	ElapsedTime	- The time elapsed since the previous frame update.

Reimplemented in Diligent::EmscriptenAppBase, Diligent::IOSAppBase, Diligent::MacOSAppBase, Diligent::TVOSAppBase, and Diligent::UWPAppBase.

WindowResize()

virtual void Diligent::AppBase::WindowResize ( int width, int height )

pure virtual

Called when the window resizes.

An application must override this method to perform operations required to resize the window.

Parameters

[in]	width	- New window width
[in]	height	- New window height
